Why Humanoid Robot Joints Are a Machining and Welding Problem

The humanoid robot boom is usually told in terms of AI: control policies, dexterity benchmarks, foundation models. Less discussed is the mechanical bill of materials — and the fact that a humanoid's performance ceiling is set substantially by its joints. A robot that must run, reach, and recover from disturbance needs knee and elbow structures that are simultaneously light, strong, precisely finished, and able to survive millions of load cycles. Meeting all four at once is a manufacturing problem before it is a robotics problem.

What a robot joint demands from its structure.

● Complex geometry, tight fits. Elbow and knee assemblies integrate bearing seats, cable routings, actuator mounts, and sealing features into one envelope. Tolerances on mating features run tight, because backlash at the joint compounds into error at the end-effector.

● High strength-to-weight. Every gram at a distal joint costs actuator torque, energy, and response time. High-strength aluminum alloys dominate designs; titanium appears at the highest-loaded interfaces.

● Complex load paths. Joints see combined bending, torsion, and impact loads, often reversed — the exact loading that punishes stress concentrations and weak welds.

● Dynamic response. Lightweight structure isn't just about payload: it raises the achievable closed-loop bandwidth of the whole limb.

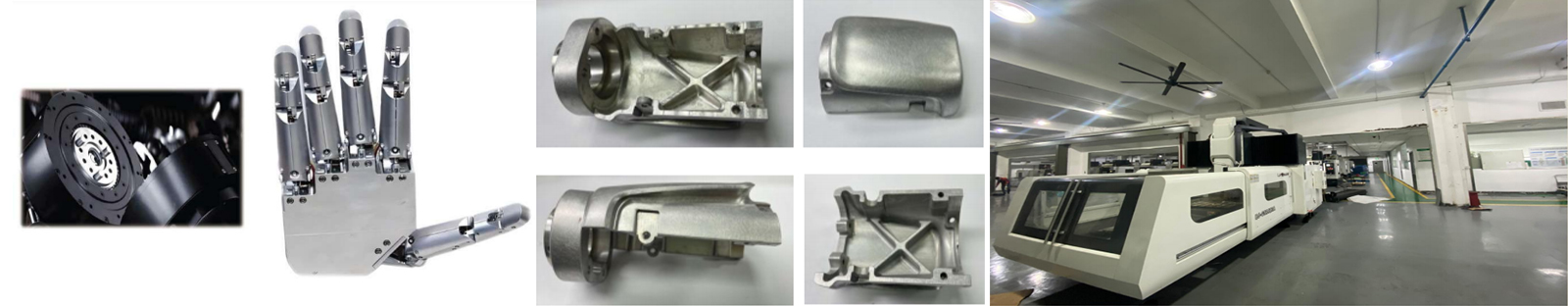

The manufacturing route that satisfies all four. Deyanfu's robot components are produced by combining five-axis CNC machining with friction stir welding — and the pairing is deliberate. Five-axis machining holds the geometry: complex elbow structures with demanding dimensional precision and fit clearances come off five-axis centers directly. Friction stir welding holds the joining: because the process is solid-state, heat input is low and deformation stays minimal — which is precisely what a precision joint cannot give up. Welding a joint structure without pulling it out of true means the machined accuracy survives assembly.

One-piece design beats bolted assembly. The arm structure illustrates the lightweighting logic: key load-bearing members are designed as integrated, one-piece machined-and-welded components rather than bolted assemblies. Every bolted joint in a robot arm adds weight, adds tolerance stack-up, adds a potential loosening failure mode, and lowers structural stiffness — and dynamic response suffers accordingly. Structural integration removes those penalties while raising strength and dynamic responsiveness, and friction stir welding is what makes integration manufacturable in aluminum.

Why this capability generalizes. The same manufacturing platform — precision five-axis machining plus solid-state welding of aluminum and dissimilar metals — serves adjacent markets Deyanfu already produces for: semiconductor equipment components, medical device parts, 5G communication hardware, and 3C structural components. Robot joints simply concentrate the requirements: tighter fits than most electronics, more dynamic loading than most medical parts, and lighter weight targets than most industrial equipment. With 185+ machining centers at ±0.01 mm accuracy and friction stir welding capacity up to 3,000 × 2,000 mm work envelopes, the production system underneath is shared.

What robot OEMs should ask a machining supplier. First, can they hold post-weld flatness and position without a re-clamping chain that accumulates error? Second, can they cross-section and validate welds in-house — joint strength claims need metallography behind them. Third, can they support mixed volumes: prototypes for design iteration, then scale without changing the process? The robot industry's product cycles reward suppliers who can follow a design from first article to fleet.

Humanoid robotics will be won by teams who get the intelligence right. But it will be manufactured by teams who get the joints right — and the joints are, before anything else, a precision machining and solid-state welding challenge.
