Refill Friction Stir Spot Welding: A Cleaner Alternative to Resistance Spot Welding and Riveting

Ask a manufacturing engineer how they join two overlapping aluminum sheets, and the answer is usually one of two things: resistance spot welding (RSW) or self-piercing rivets (SPR). Both work. Both also carry costs that product designers have learned to live with — until a solid-state alternative called refill friction stir spot welding (RFSSW) matured into mass production.

First, the shortcomings of the incumbents. Resistance spot welding aluminum is genuinely difficult: aluminum's high electrical conductivity forces enormous currents, electrodes degrade quickly, and the heat-affected zone softens the surrounding material. Dissimilar stacks — aluminum to copper, for instance — are worse, because intermetallic compounds form in the molten nugget. Self-piercing rivets sidestep the metallurgy but punch a hole through the part, add fastener weight, demand expensive die sets per joint geometry, and create galvanic-corrosion risk when dissimilar metals are riveted together. Adhesives avoid both problems but bring curing time, surface preparation, and aging concerns.

How RFSSW works. The tool consists of three coaxial components — a clamp collar, a shoulder, and a pin — that rotate independently. The pin and shoulder retract and plunge into the upper sheet in sequence, plasticizing the material by friction. When the tool withdraws, it deliberately "refills" the cavity it created, leaving a flat, keyhole-free surface. No melting, no filler wire, no shielding gas, no spatter, no arc light, no fume.

Why the refill matters. Early friction stir spot welding left a keyhole at every joint — a stress concentrator and corrosion initiation site. The refill process eliminates it, which is why RFSSW has been adopted where fatigue life and surface appearance count: battery tray covers, busbars, electronics enclosures, and consumer-product housings.

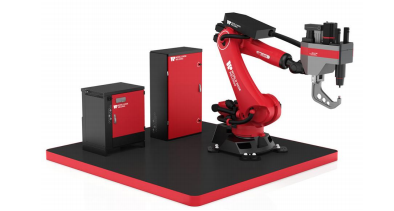

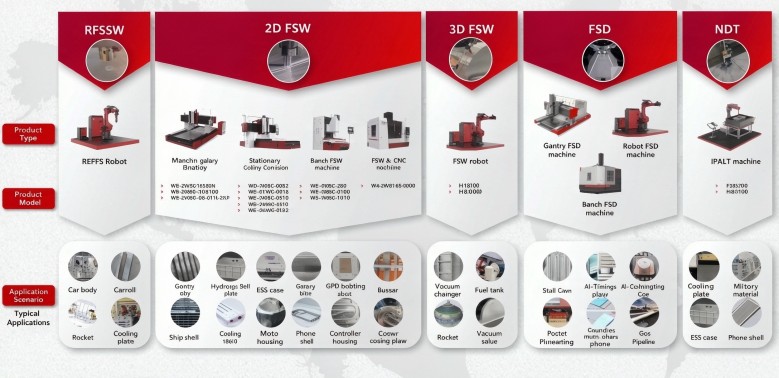

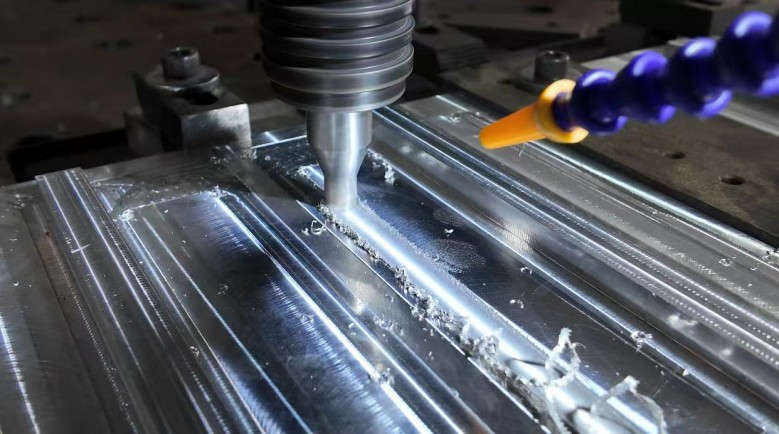

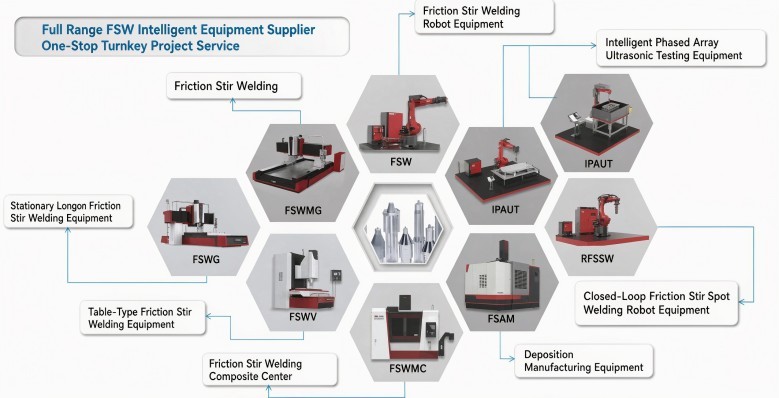

What the second generation of equipment can do. Deyanfu's second-generation lightweight refill friction stir spot welding robot pairs a heavy-duty six-axis flexible robot with a double retractable welding spindle, achieving keyhole-free spot welding at depths of 1–5 mm. Process control runs in two modes — constant pressure or constant displacement — selectable by joint type and stack-up. A radial-rigidity reinforced tool expands the same machine's capability to keyhole-free dynamic-shoulder and static-shoulder friction stir seam welding, so one workstation can spot weld and seam weld without retooling.

Where it wins in practice:

● EV battery systems. Spot-welding covers, busbars, and internal reinforcements without fasteners saves weight and eliminates corrosion couples between rivets and plates.

● Dissimilar stacks. Aluminum-to-copper terminal and busbar joints — nearly impossible by RSW — join cleanly in the solid state, with intermetallics dispersed rather than concentrated at the interface.

● 3C and consumer hardware. Flush, keyhole-free surfaces need no grinding or filling before anodizing or painting.

● Automated high-volume lines. The process is robot-carried, vision-guided, and monitored, with automatic early warning of defective welds — the profile of a lights-out production cell rather than a manual craft.

How to evaluate an RFSSW supplier. Four questions separate credible capability from brochure claims: What spot depths and material combinations have actually run at production volume? Which control mode — pressure or displacement — do they recommend for your stack, and why? Can they show joint cross-sections and strength data? And can the same equipment family handle both spot and seam welding, so your line isn't locked to one joint geometry?

Solid-state spot welding is no longer a laboratory curiosity. For aluminum-intensive, dissimilar-metal, or cosmetics-sensitive assemblies, RFSSW deserves a seat at the table next to RSW and riveting — and for a growing list of products, it has already taken theirs.
