Direct-to-Chip Liquid Cooling Is Reshaping Data Center Supply Chains — and Cold Plate Manufacturing With It

For most of computing history, "thermal management" meant fans. Air cooling defined the shape of servers, the layout of data centers, and the limits of every processor design. That era is ending. AI rack densities that once would have been measured in kilowatts are now quoted in multiples of 100 kW, and no quantity of fans can move that heat out of a rack economically. The industry's answer is direct-to-chip liquid cooling — and its rise is quietly rebuilding a supply chain around a component most data center buyers had never sourced before: the liquid cold plate.

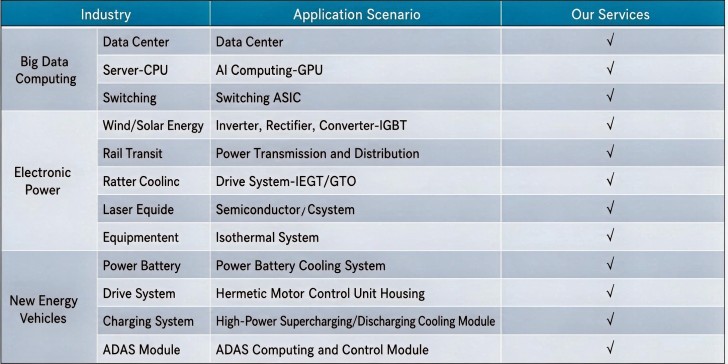

The demand curve. Liquid cooling now spans the entire computing stack: server CPUs, AI accelerators and GPUs, and network switch ASICs all ship in liquid-cooled configurations as standard options. The same physics is colliding with adjacent industries — IGBT modules in rail traction and grid equipment, power electronics in wind and solar conversion, laser systems, semiconductor manufacturing equipment, EV power batteries, ultra-fast charging modules, and autonomous-driving compute units. Liquid cold plates have become a general-purpose technology category, not a niche part.

Why the cold plate is harder than it looks. A cold plate sits in the heat path with three simultaneous jobs: mechanically support a cooled component, conduct heat from chip to coolant with minimal thermal resistance, and never leak — for years. The interface face must be machined flat and smooth; internal channels must match the thermal model's flow assumptions; the sealing weld must survive pressure pulses and thermal cycling; and internal cleanliness must be controlled to protect the entire cooling loop. Fail on any axis and the fault appears downstream as a downed rack, not a returned part.

What volume does to manufacturing. Data center programs don't buy hundreds of plates — they buy hundreds of thousands. At that scale, the cold plate stops being a machined part with a weld and becomes a production system: raw material verification, pre-weld cleaning, friction stir welding of the seal, post-weld machining to restore interface flatness, weld-seam ultrasonic inspection, dimensional measurement, helium leak detection, and surface treatment — all under traceability. Deyanfu's cold plate business, built on Al and Cu materials joined by FSW, runs exactly this chain in-house, with water-cooled plate shipments passing 200,000 pieces as early as 2020 and annual mass production now spanning six product families from NEV liquid cooling plates to 5G base station heat sinks and energy storage enclosures.

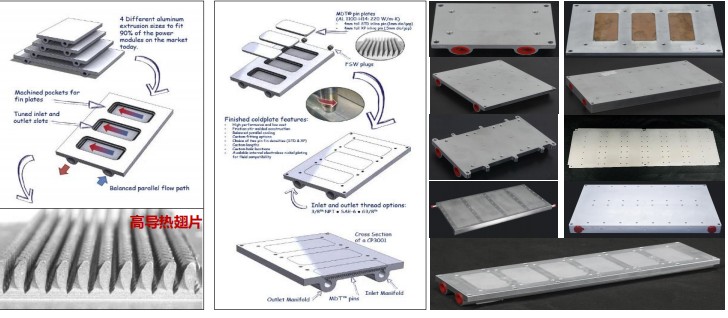

Design diversity is the other forcing function. Heat flux profiles differ by application, and channel topology follows: U-type serial channels for uniform loads, S-type for directional flow, swirl channels for mixing, and cast complex 3D channels for the highest flux densities — including microchannel structures for extreme-power AI applications, where full-liquid cooling with no fans moves heat fastest. Fins go aluminum, copper, or Al-Cu composite depending on the thermal budget. Suppliers who can simulate, prototype, and shift between these architectures give designers room to optimize; suppliers locked to one architecture force the design to follow the factory.

What data center buyers should demand from the supply chain. Three capabilities, in order of scarcity: first, process ownership — machining, welding, NDT, and leak testing under one roof, so accountability for a leak can't dissolve across four subcontractors; second, scale evidence — not prototypes, but demonstrated six-figure annual volumes with traceable quality; third, engineering partnership — thermal and flow simulation before tooling, and the willingness to iterate channel design against test data.

The liquid cooling transition is often told as a story about coolant distribution units, manifolds, and rack plumbing. But underneath it sits an unglamorous machined-and-welded aluminum part, now manufactured at a scale and quality level the industry has never demanded before. The companies that master that part will own a quiet but structural position in the AI build-out.
